Description

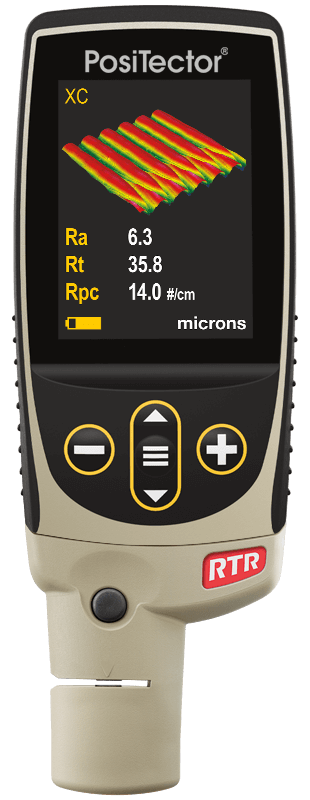

The PosiTector® RTR 3D Replica Tape Reader is an advanced digital instrument engineered for precise measurement and recording of 2D and 3D surface profile parameters on blasted or textured coatings. Using Testex Press-O-Film™ replica tape, this digital spring micrometer provides fast, reliable, and repeatable readings without the need for calibration adjustments in most applications.

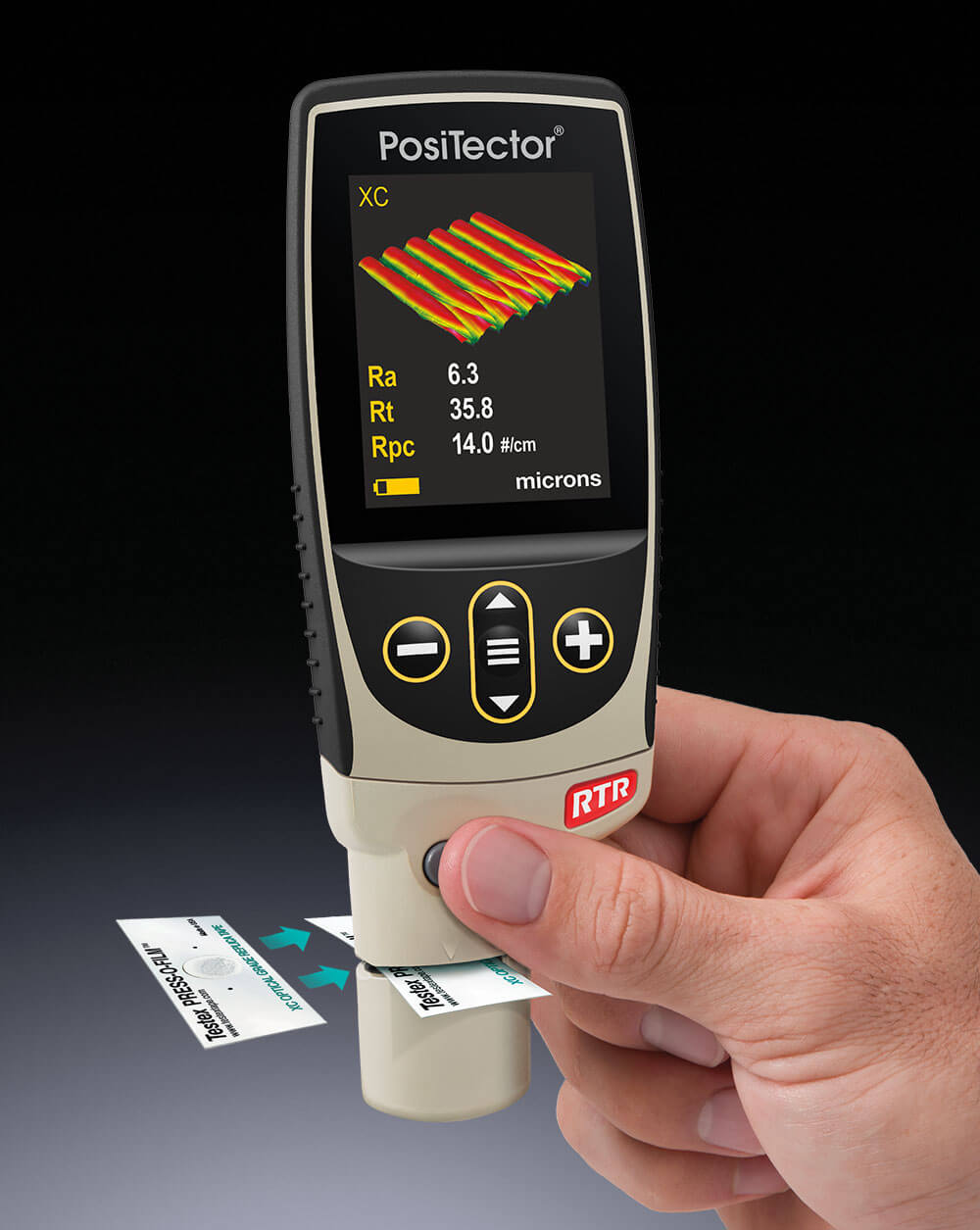

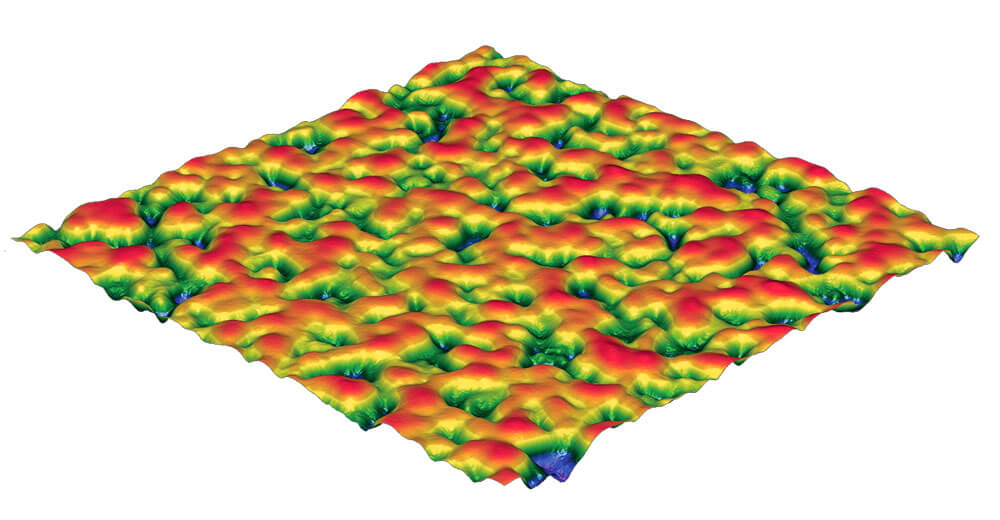

Equipped with a 2.8-inch impact-resistant color touchscreen and an intuitive, redesigned keypad, the PosiTector RTR 3D ensures effortless operation in both field and laboratory environments. To measure, simply burnish the replica tape on the prepared surface, insert it into the gauge, and instantly view detailed 3D imagery and comprehensive parameters such as Ra, Rq, Rz, Rp, Rv, Rt, Rpc (2D) and Sa, Sq, Sz, Sp, Sv, Spd (3D).
The device is ideal for assessing surface roughness on flat, curved, or irregular surfaces, ensuring maximum flexibility for coatings inspection and surface preparation verification. Measurement data and 3D .SDF image files can be easily downloaded for detailed evaluation in PosiSoft or compatible third-party software.
The PosiTector RTR 3D is available in Standard, Advanced, and Probe-Only models to suit diverse industrial needs:
-
Standard Model: Stores up to 1,000 readings per probe.
-
Advanced Model: Stores 250,000 readings in 1,000 batches, with built-in Wi-Fi and Bluetooth® connectivity for seamless data transfer.
-
Probe-Only Option: Compatible with the complete PosiTector range including 6000, 200, DPM, IRT, SPG, RTR, SST, SHD, BHI, and UTG probes.
Each unit includes a Certificate of Calibration showing traceability to PTB and NPL standards, guaranteeing accuracy and quality. Fully compliant with international standards such as ASME B46, ASTM D4417, ISO 8503-5, NACE SP287, SSPC-PA 17, SP5, SP6, SP10, and SP11-87T, this device ensures precision and reliability for professional inspection tasks.
Whether you are in the field or the lab, the PosiTector RTR 3D offers unmatched measurement accuracy, ease of use, and durability—making it the preferred choice for surface inspection professionals worldwide.
