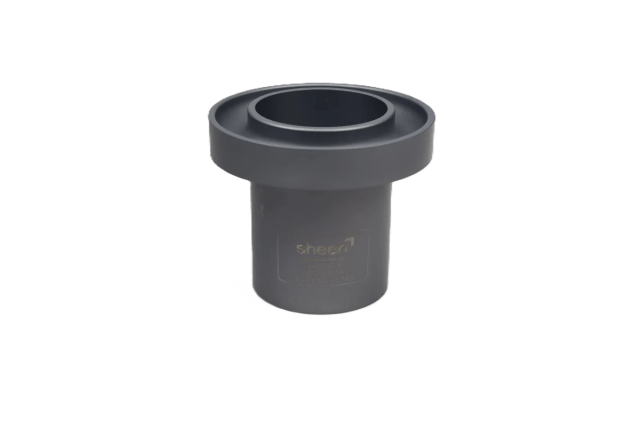

TQC Sheen AFNOR Viscosity Cups NF T030-014 Standard

Description

TQC Sheen AFNOR Viscosity Cups are high-precision laboratory-type flow cups designed in compliance with the NF T030-014 standard, ideal for measuring the viscosity of paints, lacquers, inks, and other fluids. Developed by TQC Sheen, our trusted specialist testing brand, these cups deliver accurate and repeatable viscosity readings in laboratory and industrial settings.

Each viscosity cup is crafted from titanium anodized aluminum, offering exceptional durability, chemical resistance, and stability during measurements. Every unit comes with a unique engraved serial number, a factory batch certificate, and the option for certified calibration with reference oils upon request, ensuring traceable and reliable performance.

To ensure maximum protection, each AFNOR viscosity cup is supplied in a hard plastic storage case lined with soft material, safeguarding it against impact or scratches during transport or storage.

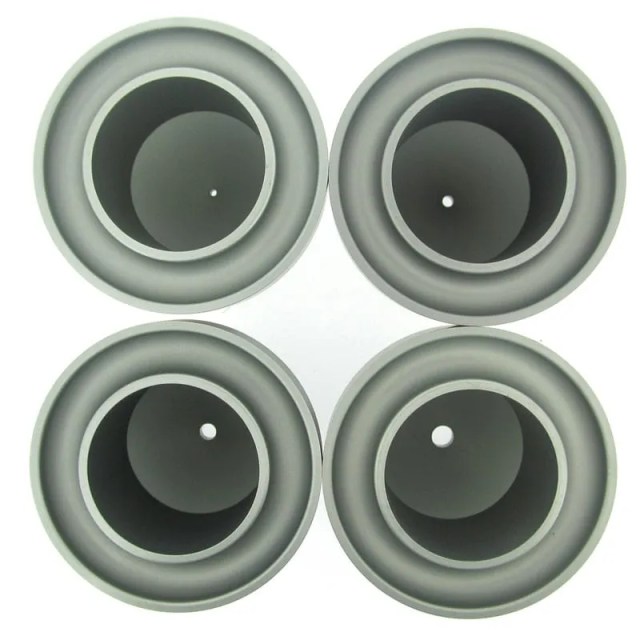

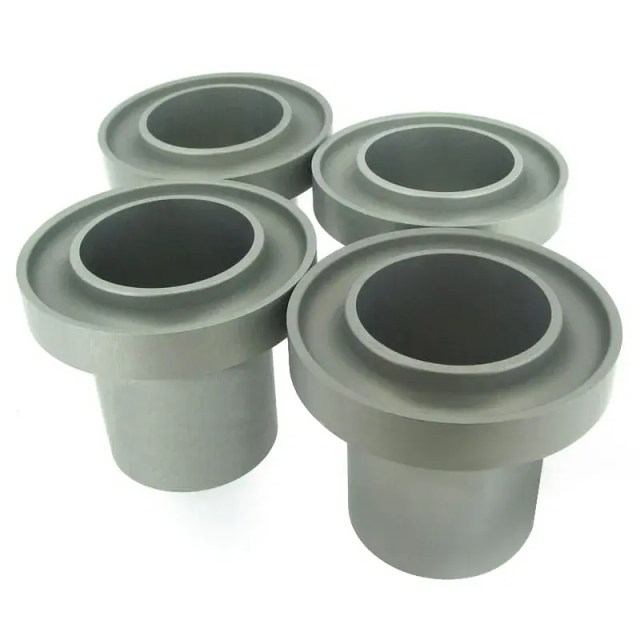

AFNOR Viscosity Cups (NF T030-014):

SKU	Type	Orifice Size	Description
VF2195	AFNOR 2.5 mm	Laboratory type	For low-viscosity fluids
VF2196	AFNOR 4 mm	Laboratory type	For medium-viscosity coatings
VF2197	AFNOR 6 mm	Laboratory type	For general-purpose testing
VF2198	AFNOR 8 mm	Laboratory type	For high-viscosity materials

(All values approximate; performance may vary based on temperature and material type.)

Features & Benefits:

Compliant with NF T030-014 – designed for professional viscosity testing.
Titanium anodized aluminum construction for superior durability.
Unique engraved serial number for authenticity and traceability.
Factory batch certificate included for quality assurance.
Optional calibration certificate with certified oils available.
Protective plastic case with soft lining for safe storage.
Built-in reservoir prevents overflow and ensures clean operation.
Easy to clean and maintain after each test.
Compatible with TQC Sheen Cup Stands and accessories.

Specifications:

Applications: Viscosity testing of paints, coatings, lacquers, and liquids.
Material: Titanium anodized aluminum.
Weight: 271 g / 9.56 oz
Dimensions: 86 × 86 × 75 mm (3.39 × 3.39 × 2.95 in)
Includes: Cup, protective case, factory certificate.

Industries & Applications:

TQC Sheen AFNOR Viscosity Cups are trusted across diverse industries including inks and coatings, food and beverage production, packaging, and chemical manufacturing. Whether you’re testing paint formulations, industrial coatings, or food emulsions, these precision flow cups deliver consistent, reliable viscosity measurements.
