Description

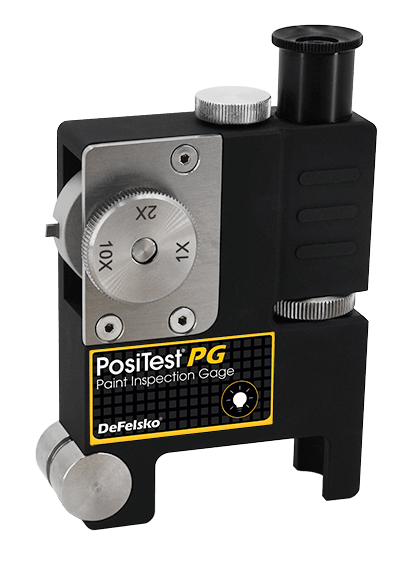

The Defelsko PosiTest® PG Paint Inspection Gage accurately measures the thickness of one or multiple coating layers on any substrate using a proven destructive testing method. This instrument provides precise layer analysis for quality control, research, and coating verification applications.

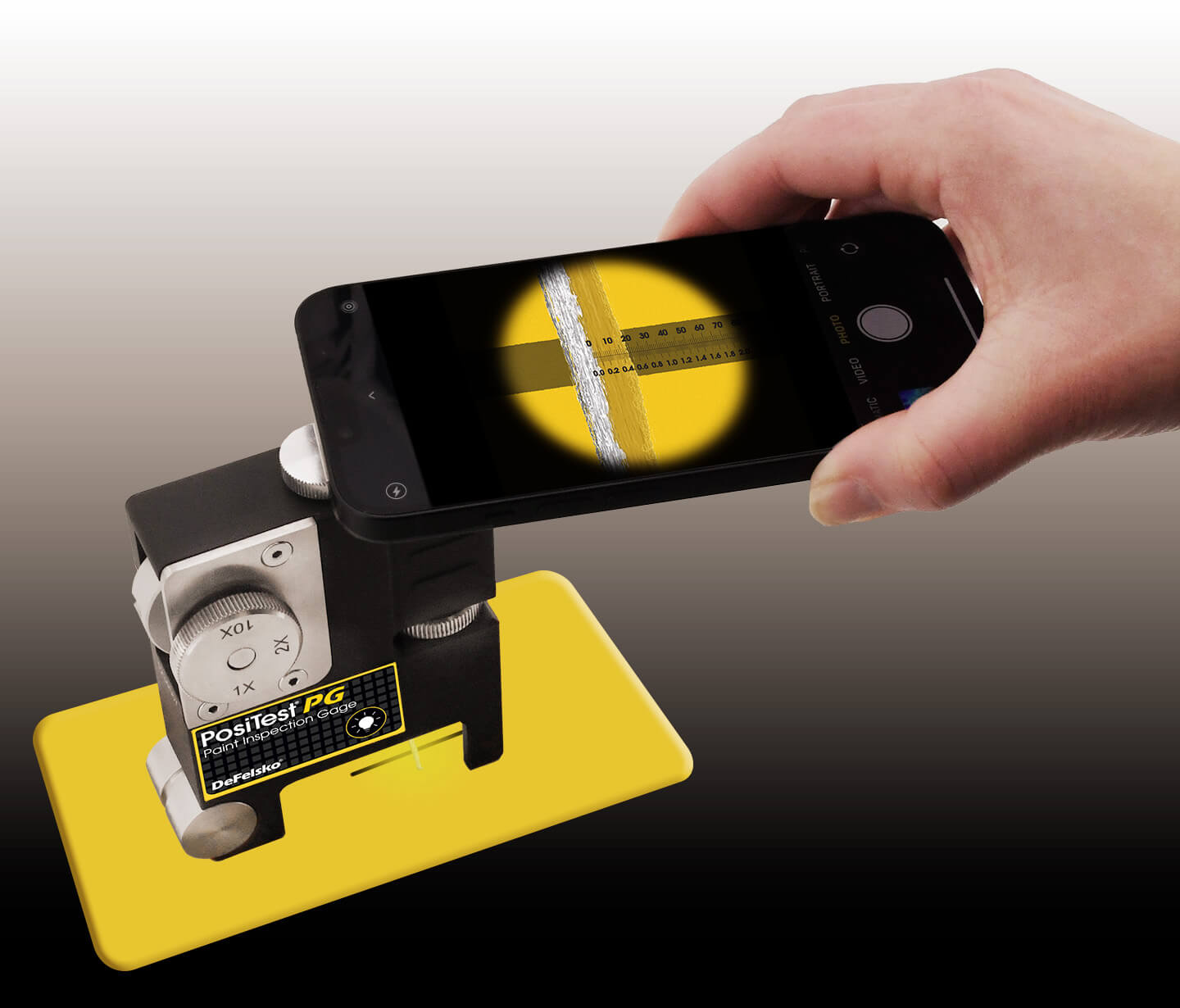

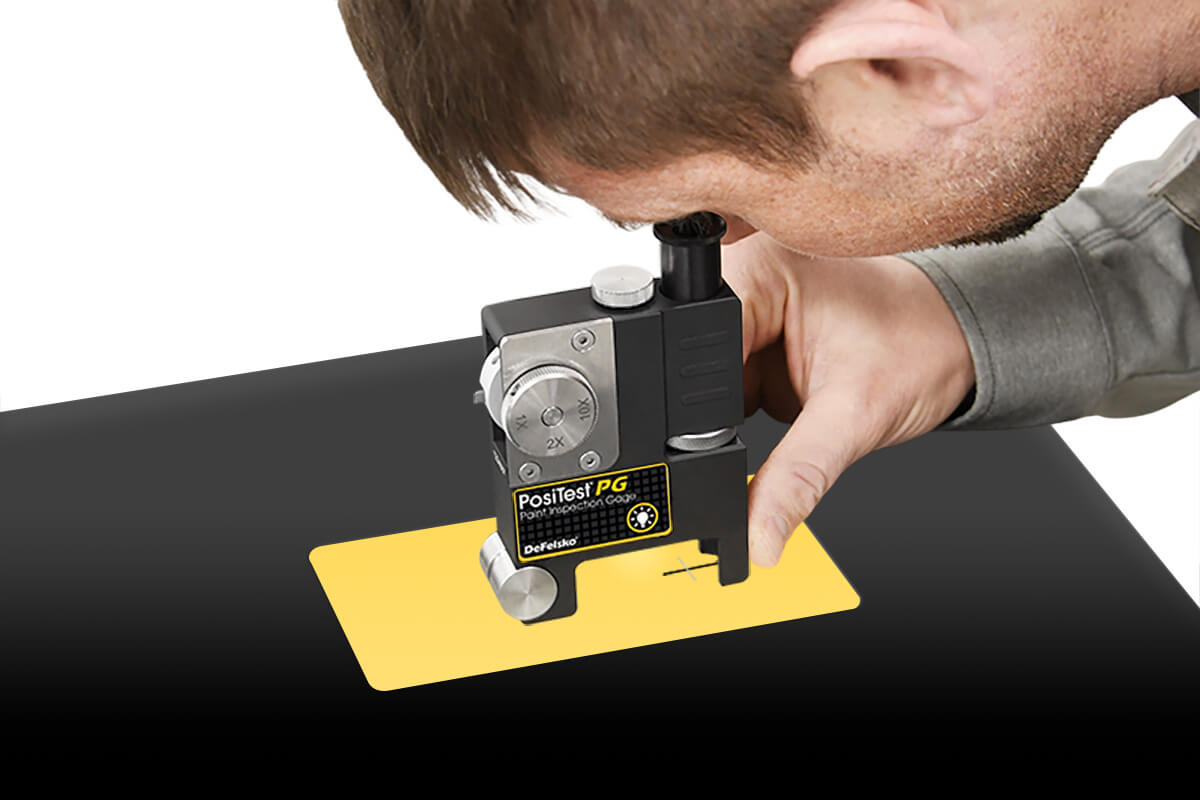

Built with a durable anodized aluminum housing, the PosiTest PG includes a rotating cutting tip holder that accommodates up to four tips, allowing flexibility for different coating thickness ranges. The integrated 50x microscope with precision optics and a rotating scale (Imperial and Metric units) ensures detailed, reliable measurement results.
A Certificate of Calibration (NIST traceable) is included, confirming accuracy and compliance with major international standards: ISO 2808/19399, ASTM D4138, JIS K 5600-1-7, and NF T30-123.
Conversion Chart:
| Cutting Tip | Conversion Factor | Coating Thickness Range |
|---|---|---|
| 1X | 1 | 0–1,250 µm / 0–50 mils |
| 2X | 0.5 | 0–625 µm / 0–25 mils |
| 5X | 0.2 | 0–250 µm / 0–10 mils |
| 10X | 0.1 | 0–125 µm / 0–5 mils |
Accuracy:
±25.4 µm (±1 mil) for 1X tip, ±12.7 µm (±0.5 mil) for 2X, and ±2.5 µm (±0.1 mil) for 10X.
Available in Pakistan through the authorized Defelsko distributor, Services Syndicate Group.
