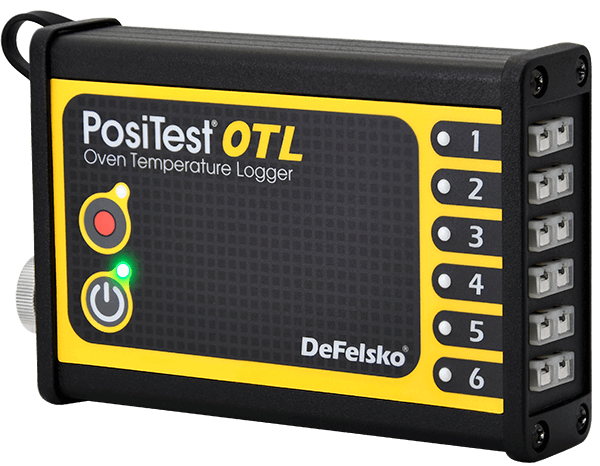

PosiTest® OTL – Precision Oven Temperature Logger

Description

The PosiTest® OTL Oven Temperature Logger accurately measures and records oven temperature profiles to ensure optimal curing and coating performance. Designed for use in industrial ovens and curing environments, it provides reliable data logging and analysis for quality control and process verification.

Key Features:

• Measures and records oven temperature profiles with high accuracy.

• Stores up to 40,000 datasets (240,000 readings) across 6 independent batches.

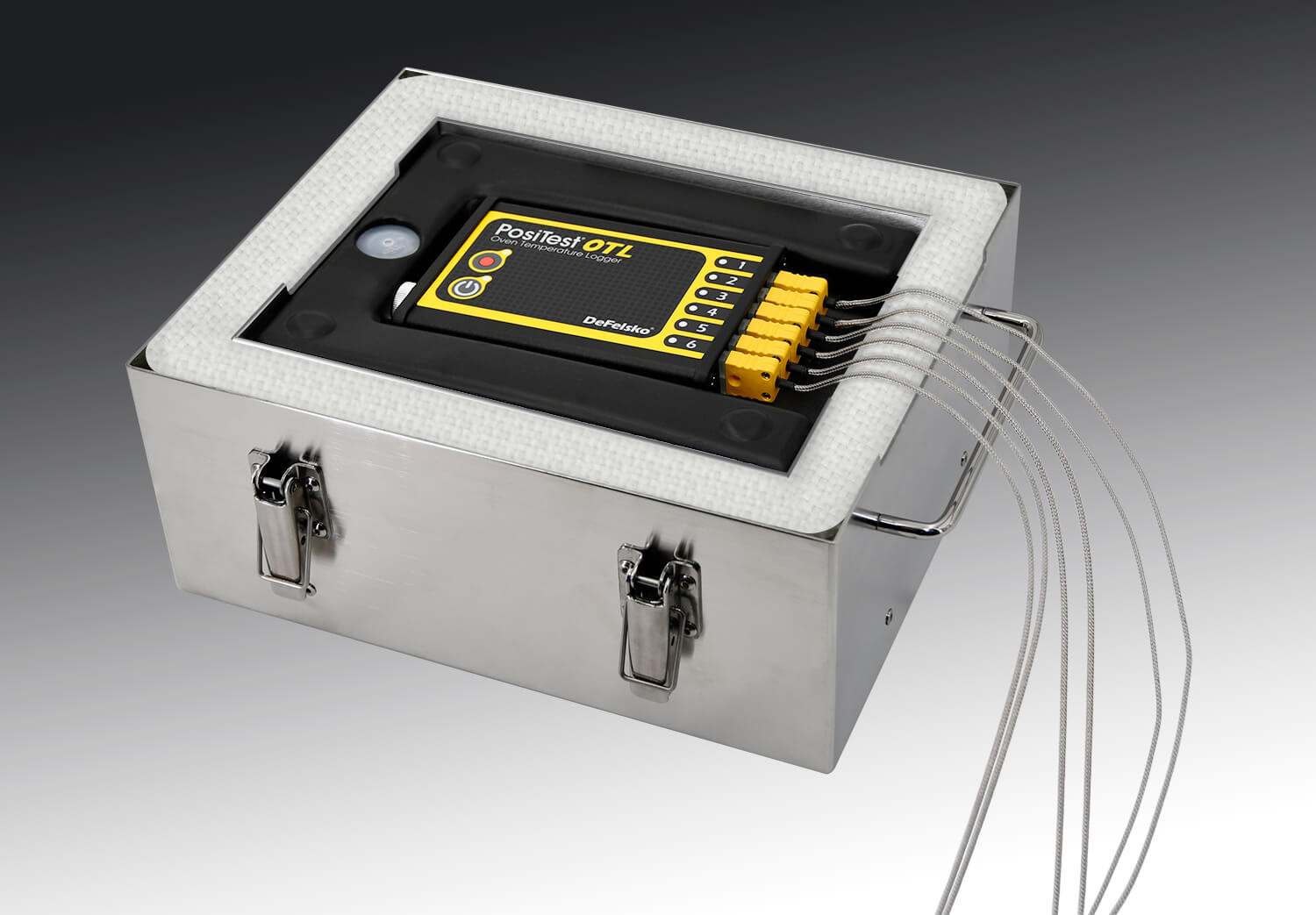

• High-temperature stainless steel barrier box with fiberglass insulation for long-duration runs at extreme temperatures — completely silicone-free.

• 6 K-type thermocouple ports (channels) for simultaneous multi-point temperature monitoring.

• New Cure Index feature compares actual oven and part temperatures against supplier specifications to verify proper curing.

• PosiSoft Desktop Software enables easy data download, viewing, and analysis; export data as .CSV files for spreadsheet use.

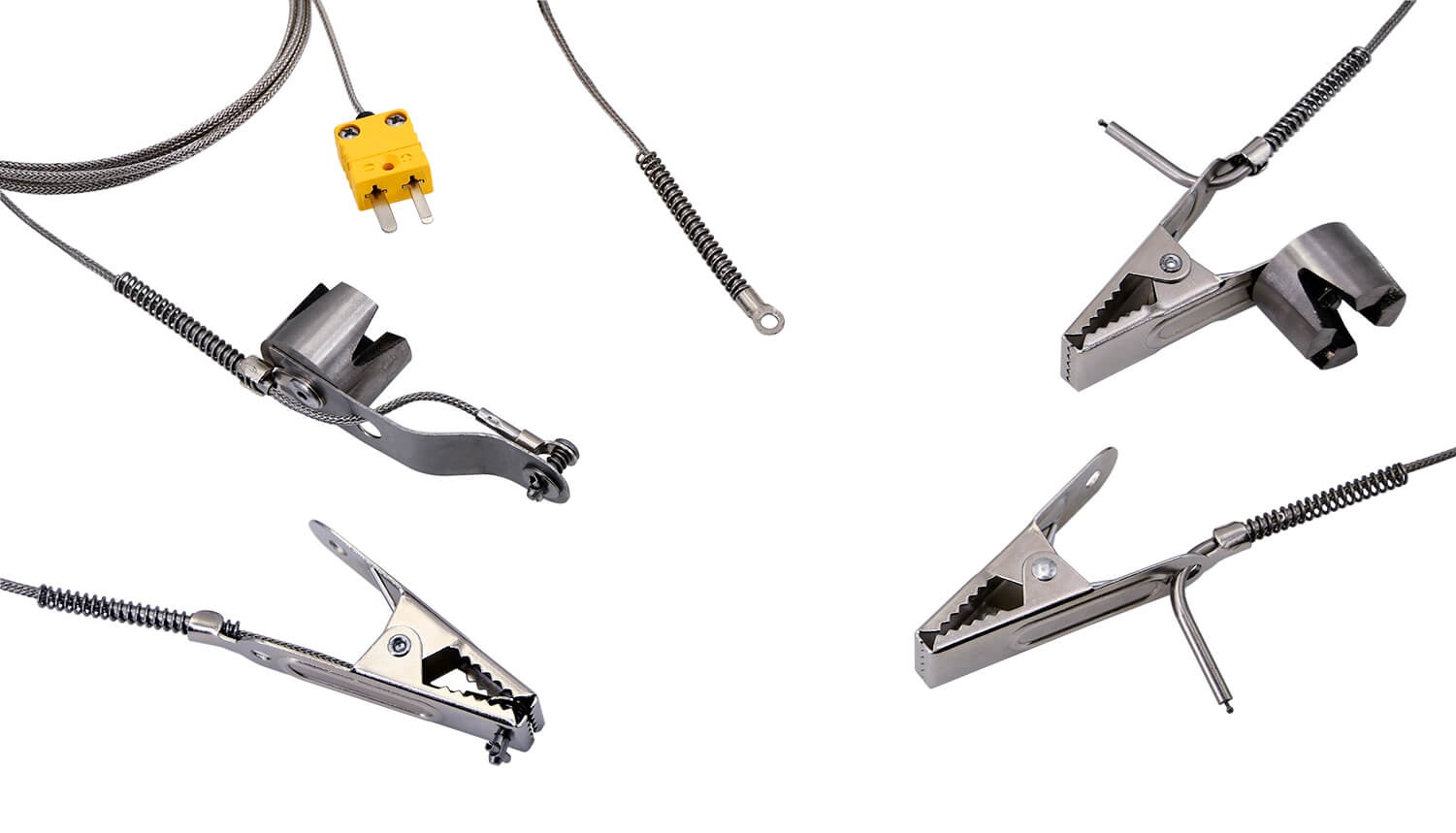

• Compatible with a wide range of probes (1.8 m, 3.6 m, or 6 m stainless steel braided cables) — sold separately.

Specifications:

• Channels: 6 K-type non-grounded thermocouples

• Measurement Range: –100 to 1000°C (–148 to 1832°F)

• Accuracy: ±0.5°C (±0.9°F)

• Resolution: 0.1°C / 0.1°F

• Memory: 40,000 datasets (6 channels per dataset)

• Sample Interval: 2 seconds (fixed)

• Recording Time: Up to 22 hours

• Power Source: 2 AAA batteries (approx. 30 hours recording time)

• Size: 30.5 × 25.5 × 15 cm (12″ × 10″ × 6″)

• Weight: 9 kg (20 lbs)
